| RPA 300 Job shop Steering Gear Tester | |
| RPA 1000 Steering Gear Analyzer | $20,800.00 |
The RPA 1000 is a new state of the art steering gear tester designed and manufactured by Kaufman Products. It has been built on the same proven platform as the Branick RPA 700. The tester comes with a larger 10 gallon reservoir and the control panel has been moved back five inches to give the operator more working area. We have also increased the length of the rack vise mount six inches to allow for longer racks to be mounted to the tester.The RPA 1000 incorporates several additional features to enable it to test all current model steering gears. To begin with, the RPA 1000 has the ability to vary and measure the flow rate in gallons per minute through the gear. This is a necessary feature to truly test the steering gears that come on many vehicles manufactured after 1993 because the variable assist steering valve is mounted in the steering pump. Since the steering effort is varied by flow rate at the pump, to properly test the gear you must be able to vary the flow rate while testing the gear under load to verify it is functioning correctly. We have further upgraded the RPA 1000 with a 12-volt test system. This will allow you to correctly test Saginaw Magnasteerฎ and ZF Servotronicฎ gears along with many other gears that have electrical components regulating the power assist. Finally, the RPA 1000 incorporates an absolute filtering system on both the pump inlet and the system return hydraulic lines. These filters are monitored with filter gauges to let the operator know when they need to be replaced. These absolute filters eliminate pump and valve failure due to oil contamination. For rebuilders with the RPA 700 testers, we can update your tester to the RPA 1000 for a nominal fee.
RPA 1000 POWER STEERING GEAR TESTER
|
RPA 1000 set up for testing gearboxes |

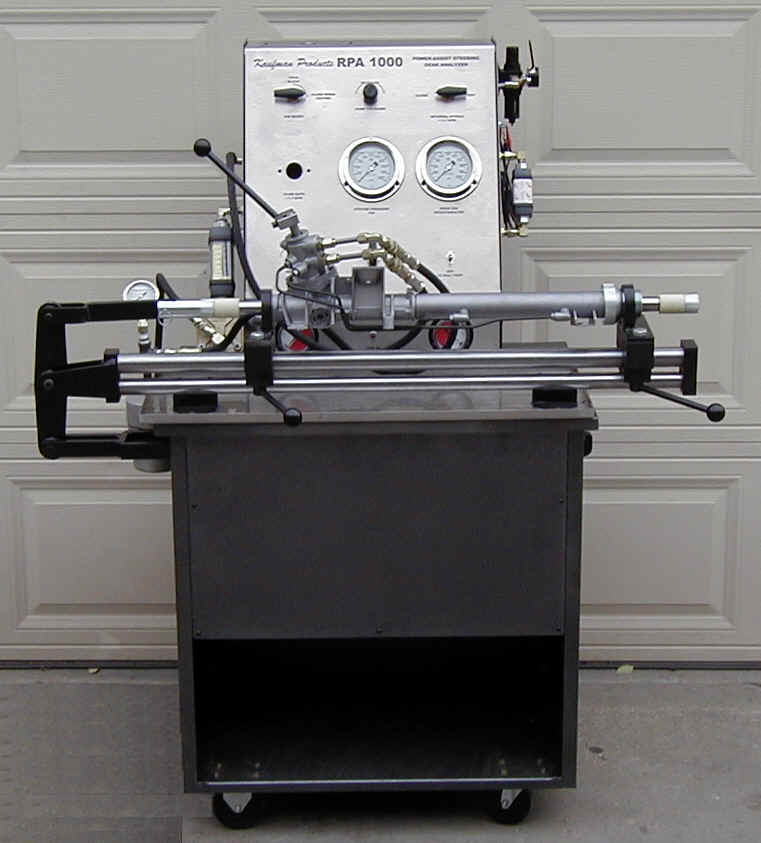

RPA 1000 set up for testing rack and pinions |
|
|
|
Below is a comparison chart to help you to compare the features of the RPA 300 and RPA 700
TESTER COMPARISON CHART
RPA 300 vs. RPA 1000
|
FEATURES |
RPA 300 |
RPA 1000 |
|
|
Hydraulically tests domestic and import rack and pinions. |
P |
P |
|
|
Hydraulically tests all steering gear boxes. |
P |
P |
|
|
Tests all steering gears for external leaks. |
P |
P |
|
|
Tests rack and pinion power piston for bypass. |
P |
P |
|
|
Tests for internal bypass of fluid in the pinion valve. |
P |
P |
|
|
Tests pinion valve for equal steering balance right and left. |
P |
P |
|
|
Tests the inlet and return port threads on the rack to verify they are not cross-threaded or striped. |
P |
P |
|
|
Measures the pressure drop across the rack thereby testing for internal blockage in pinion valve. |
- |
P |
|
|
Checks for equal steer right and left under no load. |
P |
P |
|
|
Hydraulic reservoir capacity. |
10 GAL |
10 GAL |
|
|
Puts a measured resistance in the steering gear and measures force right and left to over come this load - Power Assist. |
- |
P |
|
|
Road simulates the rack and pinion to insure equal |
|||
|
steer right and left under true road conditions. |
- |
P |
|
|
Road simulates gear boxes to insure equal steer right |
|||
|
and left under true road conditions. |
- |
P |
|
|
No cost serviceable Oberg filter on return line. |
- |
P |
|
|
No cost serviceable Magnetic filter on return line. |
- |
P |
|
|
5 Micron absolute filter with filter gauge on return line. |
P |
P |
|
|
5 Micron absolute filter with filter gauge on inlet line. |
P |
P |
|
|
Fixed maximum pressure regulator. |
- |
P |
|
|
Variable pressure regulator allowing you to test gear at any pressure. |
P |
P |
|
|
Pressure Gauges (Diameter) |
2 ฝ" |
4" |
|
|
Variable flow regulator allows you to set flow when testing gear |
- |
P |
|
|
0-5 GPM flow guage |
P |
P |
|
|
12 Volt test system for testing gears with electronics. |
- |
P |
|
|
Air evacuation system integrated into the hydraulic system. |
- |
P |
|
|
Low oil level reservoir warning light. |
- |
P |
|
|
Low oil level reservoir float. |
P |
- |
|
|
One year manufactures warranty on all new and reconditioned testers. |
P |
P |
Oil temperature guage and/or oil heater available as an option.
|
Road Sim Tools for RPA 1000 |
|||||||
|
The following is a list of the Road Simulation (Sim) tools currently available from Kaufman Products for testing rack and pinions and steering gearboxes. All except the items marked by an "*" are included with the purchase of a new RPA 1000. |
|||||||
|
Sim Tools for Rack and Pinion Testing |
|||||||
|
Part # |
Price Ea |
Part Discription |
Part # |
Price Ea |
Part Discription |
||
|
S100 |
$27.00 |
M22 X 1.5 Female Rack Sim adapter |
S137 |
$31.00 |
M20 X 1.5 Male adapter Pathfinder |
||
|
S101 |
$18.00 |
M22 X 1.5 Female Rack Sim stop |
S138 |
$22.00 |
M20 X 1.5 Male stop Pathfinder |
||
|
S102 |
$27.00 |
M14 X 1.5 Female Rack Sim adapter |
S139 |
$31.00 |
M22 X 1.5 Male adapter Silverado |
||
|
S103 |
$18.00 |
M14 X 1.5 Female Rack Sim stop |
S140 |
$22.00 |
M22 X 1.5 Male stop Silverado |
||
|
S104 |
$27.00 |
M16 X 1.5 Female Rack Sim adapter |
S141 |
$31.00 |
M24 X1.5Male adapter Dakota 4WD |
||
|
S105 |
$18.00 |
M16 X 1.5 Female Rack Sim stop |
S142 |
$22.00 |
M24 X 1.5 M Sale Stop Dakota 4WD |
||
|
S106 |
$27.00 |
15/16-20 Female Rack Sim adapter |
|||||
|
S107 |
$18.00 |
15/16-20 Female Rack Sim stop |
|||||
|
S108 |
$9.00 |
พ" ID X 1 ⅝" OD Hard Washer Stop (2 Supplied with tester) |
|||||
|
S109 |
$12.00 |
1" ID X 1 ⅝" OD Hard Washer Stop (2 Supplied with tester) |
|||||
|
Sim Tools for Gear Box Testing |
|||||||
|
S110 |
$110.00 |
Center Steer and gearbox sim bar |
|
||||
|
S111 |
$9.80 |
Center Steer Bolt Honda/GM (2 pieces/set) |
Part # |
Price Ea |
Part Discription |
||
|
S112 |
$31.00 |
M12 X 1.25 Male Rack Sim adapter |
S200* |
$800.00 |
Gearbox Master Sim fixture |
||
|
S113 |
$22.00 |
M12 X 1.25 Male Rack Sim stop |
S210* |
$550.00 |
Sim plate for Sag # 1483, 1484 |
||
|
S114 |
$31.00 |
M14 X 1.50 Male Rack Sim adapter |
S211* |
$550.00 |
Sim plate for Sag # 2644 |
||
|
S115 |
$22.00 |
M14 X 1.50 Male Rack Sim stop |
S212* |
$550.00 |
Sag plate for Sag # 0525, 1676,7962 |
||
|
S116 |
$31.00 |
M16 X 1.00 Male Rack Sim adapter |
S213* |
$350.00 |
Saginaw Sim Pitman arm |
||
|
S117 |
$22.00 |
M16 X 1.00 Male Rack Sim stop |
|||||
|
S118 |
$31.00 |
M16 X 1.50 Male Rack Sim adapter |
|||||
|
S119 |
$22.00 |
M16 X 1.50 Male Rack Sim stop |
|||||
|
S120 |
$31.00 |
M17 X 1.00 Male Rack Sim adapter |
|||||
|
S121 |
$22.00 |
M17 X 1.00 Male Rack Sim stop |
|||||
|
S122 |
$31.00 |
M18 X 1.50 Male adapter Envoy |
|||||
|
S123 |
$22.00 |
M18 X 1.50 Male stop Envoy |
|||||
|
S124 |
$27.00 |
M20 X 1.50 Female Rack Sim adapter |
|||||
|
S125 |
$18.00 |
M20 X 1.50 Female Rack Sim stop |
|||||
|
S126 |
$27.00 |
13/16 - 20 Jaguar Rack Sim adapter |
|||||
|
S127 |
$18.00 |
13/16 - 20 Jaguar Rack Sim stop |
|||||
|
S128 |
$110.00 |
Audi Center Steer Rack Sim adapter |
|||||
|
S129 |
$5.90 |
Audi Bolt |
|||||
|
S130 |
$31.00 |
M16 X 1.25 Male Rack Sim adapter |
|||||
|
S131 |
$22.00 |
M16 X 1.25 Male Rack Sim stop |
|||||
|
S132 |
$31.00 |
M14 X 1.25 Male Rack Sim adapter |
|||||
|
S133 |
$22.00 |
M14 X 1.25 Male Rack Sim stop |
|||||
|
S134 |
$17.40 |
Chrysler Cirrus Road Sim mount |
|||||
|
S135* |
$31.00 |
M12 X 1.0 Renault & Peugeot Rack Sim adapter |
|||||
|
S136* |
$22.00 |
M12 X 1.0 Renault & Peugeot Rack Sim stop |
|||||
|
Steering Gear Tester Fittings |
||
|
Part # |
Price ea |
Description |
|
F10 |
$16.50 |
1/2-20 O Ring Fitting |
|
F11 |
$16.50 |
9/16-18 O Ring Fitting |
|
F13 |
$20.10 |
12 mm O Ring Fitting |
|
F14 |
$16.50 |
16 mm O Ring Fitting (2 Supplied With Tester) |
|
F15 |
$21.20 |
5/8-18 O Ring Fitting |
|
F16 |
$16.50 |
18 mm O Ring Fitting |
|
F18 |
$31.00 |
OE GM/Chrysler Pressure Fitting |
|
F19 |
$31.00 |
OE GM/Chrysler Return Fitting |
|
F20* |
$31.00 |
OE Ford Pressure Fitting |
|
F21* |
$31.00 |
OE Ford Return Fitting |
|
F22 |
$16.50 |
14mm X 1.5 O Ring Fitting (2 Supplied with Tester) |
|
F23 |
$31.00 |
Tube Adapter For O Ring Fittings (2 Supplied with Tester) |
|
F24 |
$27.00 |
17 mm O Ring Fitting for Toyota and Mazda |
|
F25* |
$24.00 |
Porsche 944 Tester Fitting (2 Supplied with Tester) |
|
F26* |
$75.00 |
Merkur Test Fittings Set (Direct connect) |
|
F27 |
$21.50 |
Honda 12mm X 1.25 O Ring Fitting (2 Supplied with Tester) |
|
F28 |
$7.50 |
O Ring Fitting Cap Plug (2 Supplied with Tester) |
|
F29 |
$60.00 |
92-94 Acura Legend And Vigor Test Fitting Set (Direct connect) |
|
F30* |
$38.00 |
Mazda RX-7 Test Fitting Set |
|
F31* |
$60.00 |
2000 Ford Explorer, Escape, Focus push-in lines Test Fitting Set (Direct connect) |
|
F32 |
$36.00 |
Mercedes Benz 14mm X 1.0 O Ring Fitting |
|
F34* |
$35.00 |
Blazer/Envoy O Ring Fitting (2 Supplied with Tester) |
|
F35 |
$21.50 |
Dodge Ram 20mm X 1.5 O Ring Fitting |
|
F36 |
$36.00 |
Mercedes Benz 16mm X 1.0 O Ring Fitting |
| F50 | $43.00 | 3.8" Push-In-Fitting - Direct Connect(Ford/Cadillac/Volvo) |
| F51 | $43.00 | 11mm / 7/16" Push-In-Fitting - Direct Connect(Ford/Cadillac/H3/Jaguar/MB/Volvo) 2 Supplied |
| F52 | $43.00 | 12mm Push-In-Fitting -Direct Connect(Envoy,Colorado/Volvo/H3) 2 Supplied with Tester |
| F53 | $43.00 | 14mm Push-In-Fitting -Direct Connect(Ford Aviator/Jaguar) |
| F54 | $43.00 | 9/16" Push-In-Fitting -Direct Connect(Ford F150) |
| F55* | $54.00 | 15mm Push-In-Fitting -Direct Connect(Porsche) |
| F56* | $54.00 | 16mm Push-In-Fitting -Direct Connect(Porsche) |
| F60 | $15.00 | Push-In-Fitting hardware kit |
|
* Not supplied with tester |
||
|
Steering Gear Tester Service Parts |
|
|
Price ea |
Description |
|
$9.50 |
3 1/2" Dia. 3/8" NPT Absolute 5 Micron Spin On Filter for RPA 700 Tester |
|
$32.00 |
5" Dia. 3/4" NPT Absolute 5 Micron Spin On Filter for RPA 300 & 1000 Tester |
|
$54.00 |
3 1/2" Dia. Screen Filter for RPA 700 & 1000 Tester |
|
$82.00 |
Sun Fixed Type Pressure Regulating Valve |
|
$92.25 |
Sun Adjustable Type Pressure Regulating Valve |
|
$275.00 |
3 GPM Tester Pump |
|
$143.00 |
3 Way Whitty valve |
|
$260.00 |
Flow control valve 0-3 GPM |
|
$160.00 |
4" Pressure gauges (Specify range) |
|
$56.00 |
TT100 Steering turning tool for testers |
